$11.95
Description

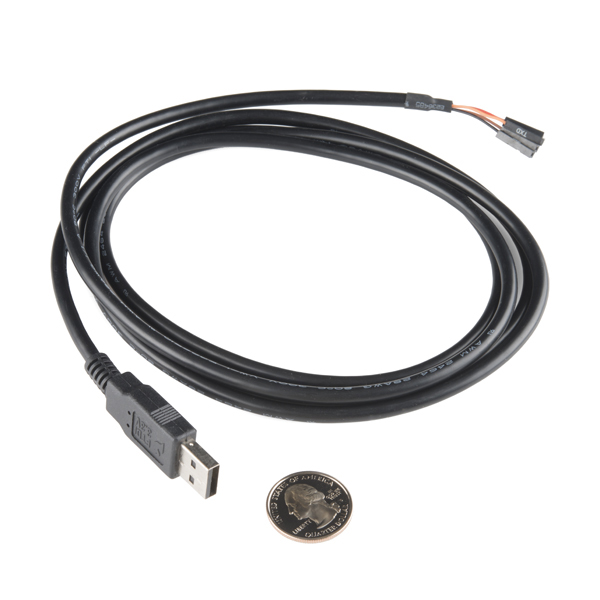

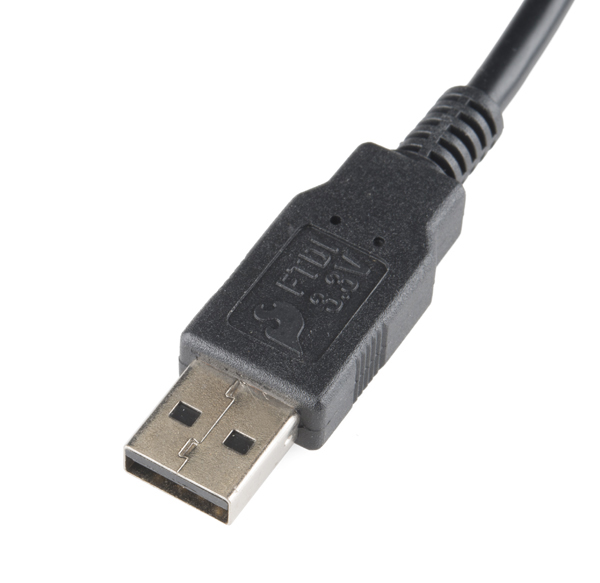

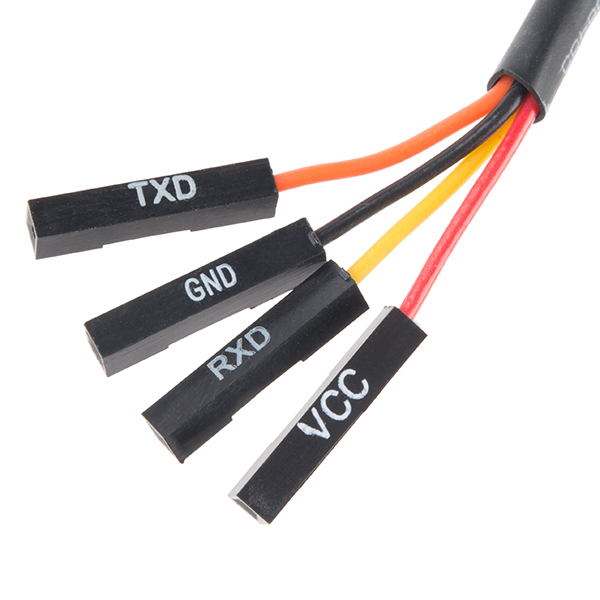

This is a USB to TTL Serial Cable which allows for a simple way to connect TTL interface devices to USB. The I/O pins of this cable are configured to operate at 3.3V specifically with a Raspberry Pi with each serial pin broken apart. Thanks to its separated pins, this cable is a perfect candidate for powering, connecting, and accessing the login and debug console on the Raspberry Pi. The FTDI cable is designed around an FT232, which is housed in a USB-A connector. The other side of the cable is terminated with a separated 4-pin connector with the following pinout: RX (Yellow), TX (Orange), VCC (3.3V) (Red), and GND (Black). A link to the FTDI drivers can be found in the Documents section below.Includes
.Features
- ATSAMD21G18 32-bit/48MHz ARM Cortex-M0+
- 4MB Flash Memory
- 32KB SRAM
- 32KB of EEPROM (emulated in Flash)
- 26 GPIO Count
- 14 ADC Channels at 12-bit Resolution
- Analog-to-Digital and Digital-to-Analog Converters (ADC & DAC)
- Vin: 4.2V-6.0V for charger – otherwise 3.5V-6.0V
- VBATT: 3.7V Lipo
- VCC: 600mA @3.3V
- Arduino R3 Layout
- Integrated USB Controller
- RGB LED
- UF2 Bootloader
- Qwiic Connector
Documents
- FTDI Drivers
- Product Video
