$189.95
Description
Use this unique device to download data and control GPIB bus enabled oscilloscopes, logic analyzers, function generators, power supplies, and any other GPIB instrument seamlessly through USB!
FT245R. Drivers are currently available for most platforms including:
- Win 7, Win 8, Win 10
- Win 98, 2000, ME, XP, Vista – Drivers available, but not actively updated
- Apple OS-8, OS-9, OS-X
- Linux >2.4.0 – Drivers Built In
- Free BSD – Drivers Built In
Includes
.
Features
- Drivers for Windows 98/ME/2000/XP/Vista/Win7, Mac OS-8/9/X, Linux
- Support for multiple devices
- Driver provides virtual serial port to send and receive data
- Powered by USB; no power supply needed
- No GPIB cable needed; controller plugs on to instrument
- All software configuration. No DIP switches
- USB 1.1 and USB 2.0 compatible
- Standard USB (B) and IEEE 488 (Male) connectors

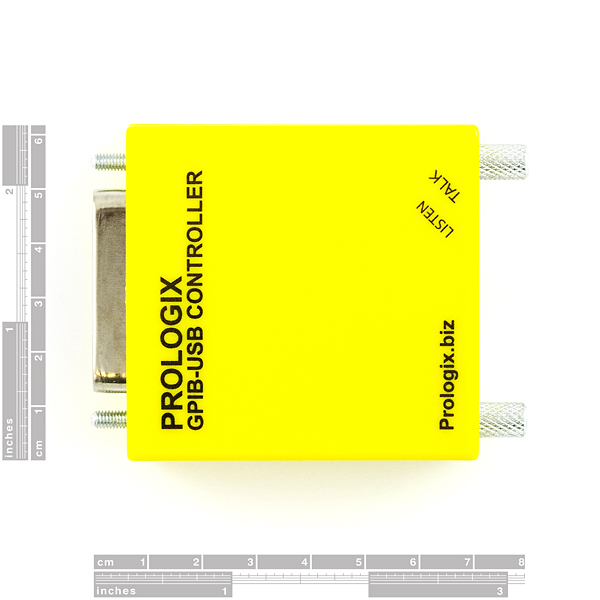

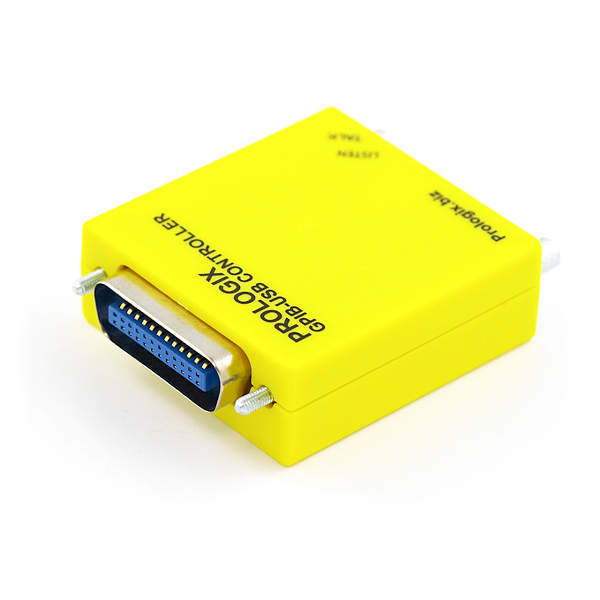

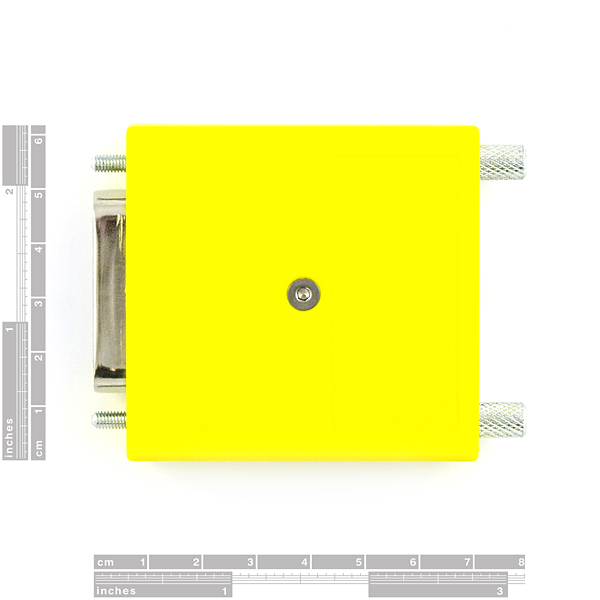

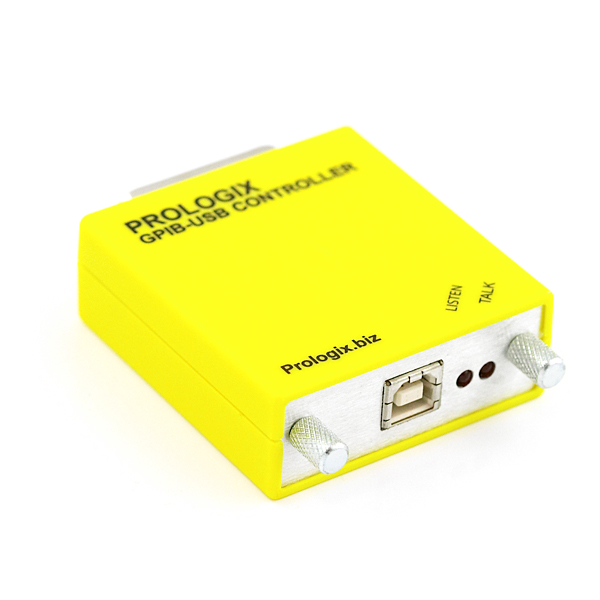

Powered over USB – no external power required. Based on the popular FTDI USB Chip – 3×2.5×0.9″
Documents
- User Manual
- GPIB-USB Controller FAQ
Reviews
There are no reviews yet.
