$5.50
Description

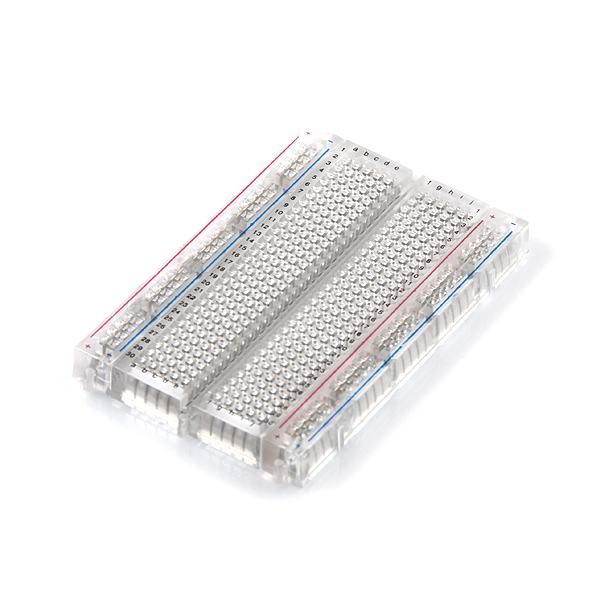

Description: Ever wonder what goes on inside these things? Well this clear bread board might enlighten.

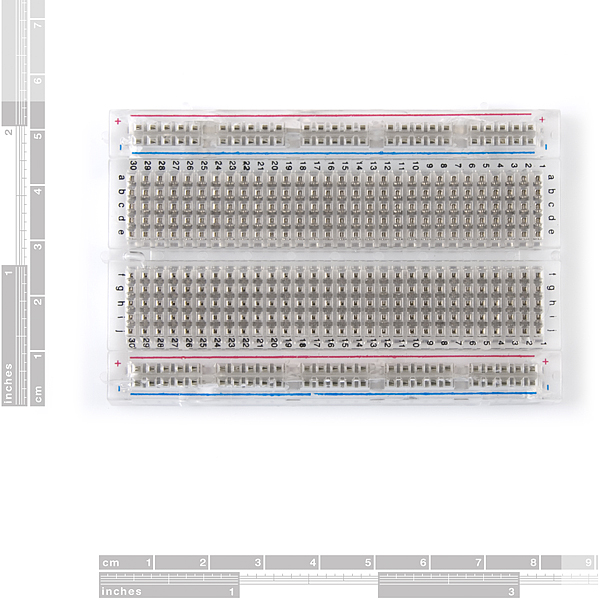

Beyond the clear plastic, this is really just a regular, solderless breadboard. It has 2 power buses, 30 columns, and 10 rows – a total of 400 tie in points. All pins are spaced by a standard 0.1″. The two sets of five rows are separated by about 0.3″, perfect for straddling a DIP package over. The board accepts wire sizes in the range of 29-20AWG.

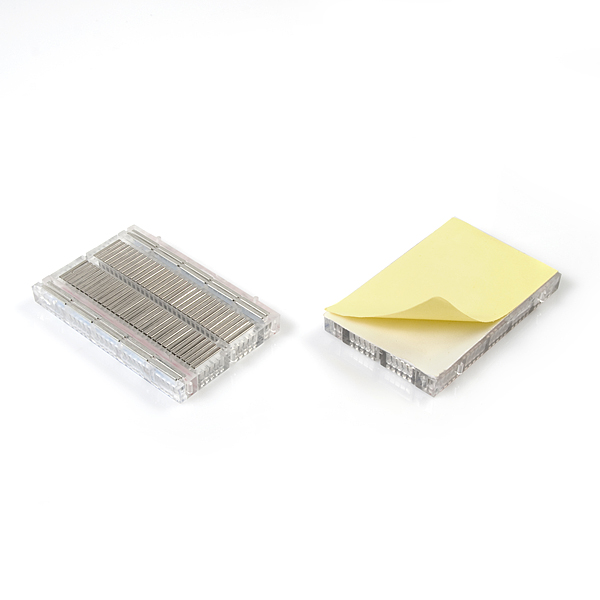

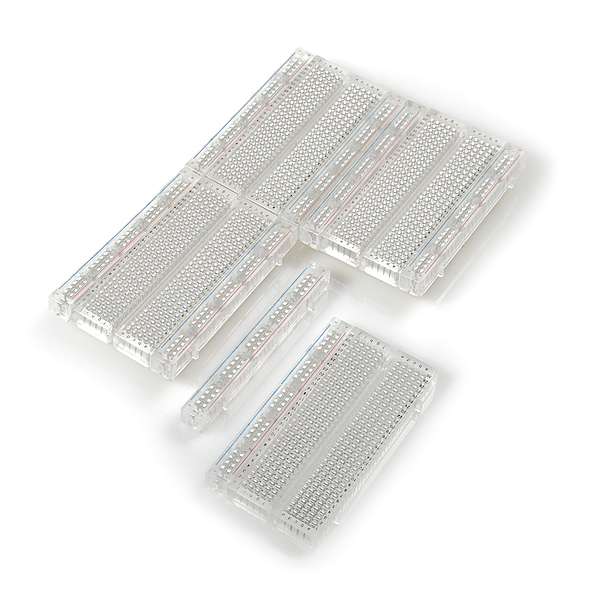

This board also has a self-adhesive on the back. The boards also have interlocking parts, so you can hook as many together as you’d like.
Dimensions: 3.29 x 2.15 x 0.33″ (83.5 x 54.5 x 8.5mm)
Includes
.
Features
- ATSAMD21G18 32-bit/48MHz ARM Cortex-M0+
- 4MB Flash Memory
- 32KB SRAM
- 32KB of EEPROM (emulated in Flash)
- 26 GPIO Count
- 14 ADC Channels at 12-bit Resolution
- Analog-to-Digital and Digital-to-Analog Converters (ADC & DAC)
- Vin: 4.2V-6.0V for charger – otherwise 3.5V-6.0V
- VBATT: 3.7V Lipo
- VCC: 600mA @3.3V
- Arduino R3 Layout
- Integrated USB Controller
- RGB LED
- UF2 Bootloader
- Qwiic Connector
Documents
- Schematic
- Eagle Files
- Hookup Guide
- Datasheet (10MB PDF)
- Graphical Datasheet
- SAMD Arduino Core
- GitHub
- Compare SparkFun RedBoards
